Rim Locks, Also Referred to as Box Locks by the older Generation are sold in Brass or Iron. Rim Locks are easy to mount to a Door. No large Mortise that weakens the door is needed to install a Rim Lock.  These Locks have all Stainless Steel internal parts, And are made of .118″ thick Steel in our Delaware Shop. Locks over 10″ are made from .13″ Steel. Dead bolt functions include Removable Bit Key front side and back side,  Thumb Slide inside, Rim Cylinder outside. We can make our locks work with almost any door woodwork situation. Please use the following link to determine left or right hand when ordering.   https://dcmitchell.com/lock-handing-information/  . Sold standard with 1 ¾’’ knobs for 6’’ and 8’’ locks, 2’’ knobs for 10’’ and 12’’. Rim cylinders sold separately. Rim Locks are also available in passage only function. (no dead bolt)

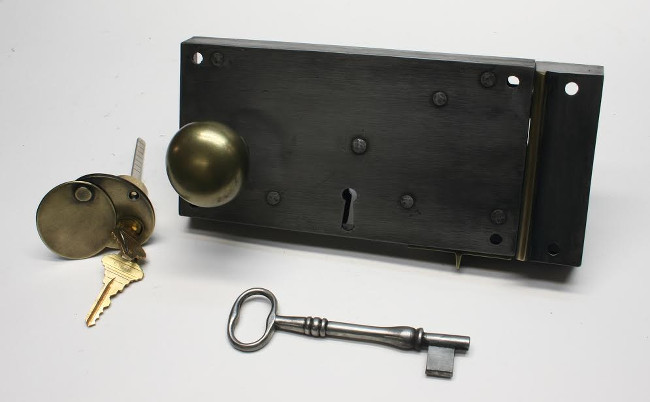

Above lock is shown with wax finish and the rivets are exposed.

> Click Here for finish options

AVAILABLE WITH FULL SIZE KEEPERS FOR DOUBLE DOORS

T4-1 8’’x 4 ¼’’ Iron Lock Privacy
T4-2 6’’x 3 ¾’’ Iron Lock Privacy
T4-4 10’’x 5 ¼’’ Iron Lock Privacy
T4-6 12’’x 6 ¼’’ Iron Lock Privacy

Vertical Locks are Recommended for doors with narrow styles. Dead Bolt functions include Removable Bit Key, and Thumbslide inside, Rim Cylinder outside. Please Specify left or right hand went ordering. Sold with 1 ¾’’ standard. Rim cylinders sold separately.
PASSAGE ONLY LOCKS AVAILABLE.

Click Here for finish options

AVAILABLE WITH FULL SIZE KEEPERS FOR DOUBLE DOORS

T7-1 5 ¾”’ x 3 7/8” Vertical Brass Lock Privacy
T9-1 5 ¾”’ x 3 7/8” Vertical Iron Lock Privacy only

Call for Prices
